Galaxy Note Series Camera Modules

Phone Camera Modules — buyer notes (Galaxy Note 20 Ultra to Galaxy Note 5)

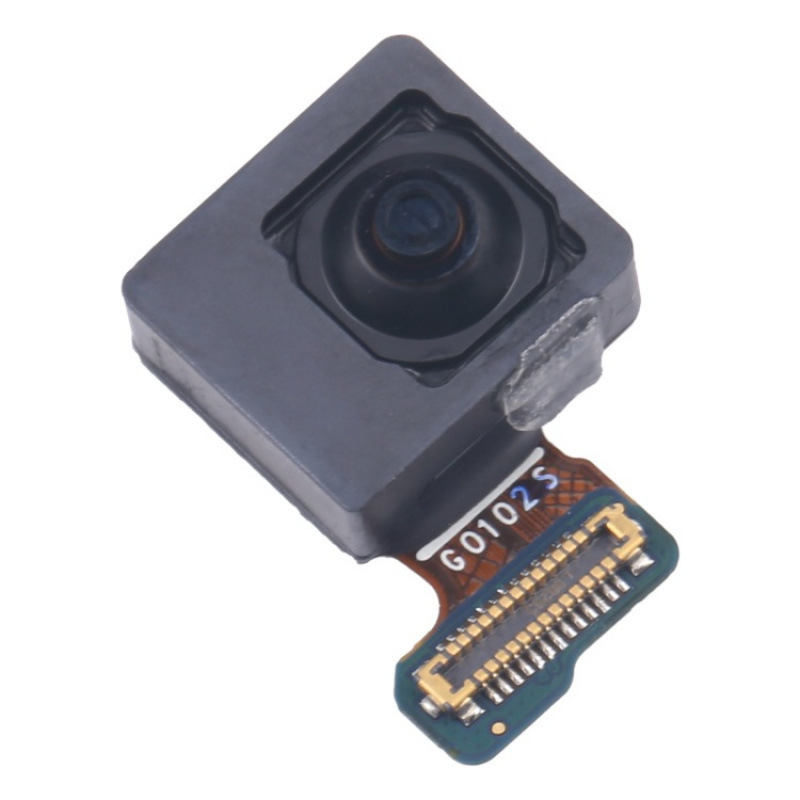

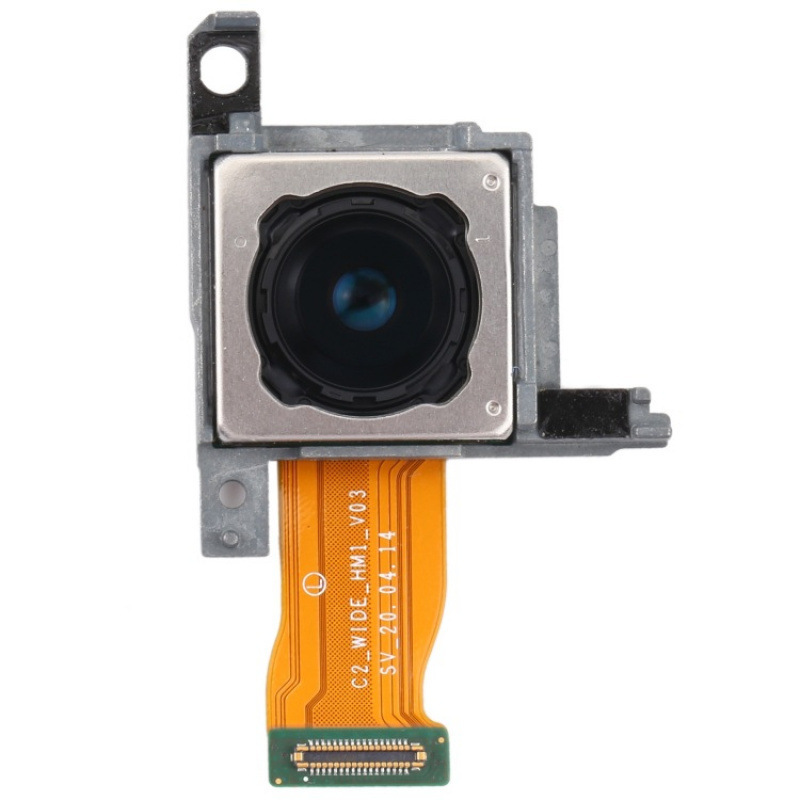

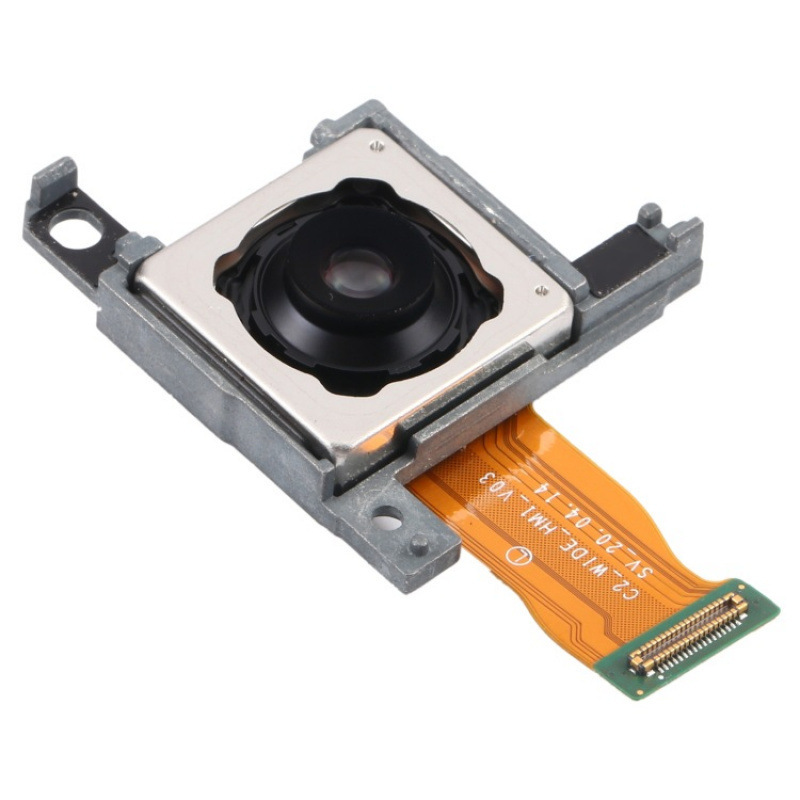

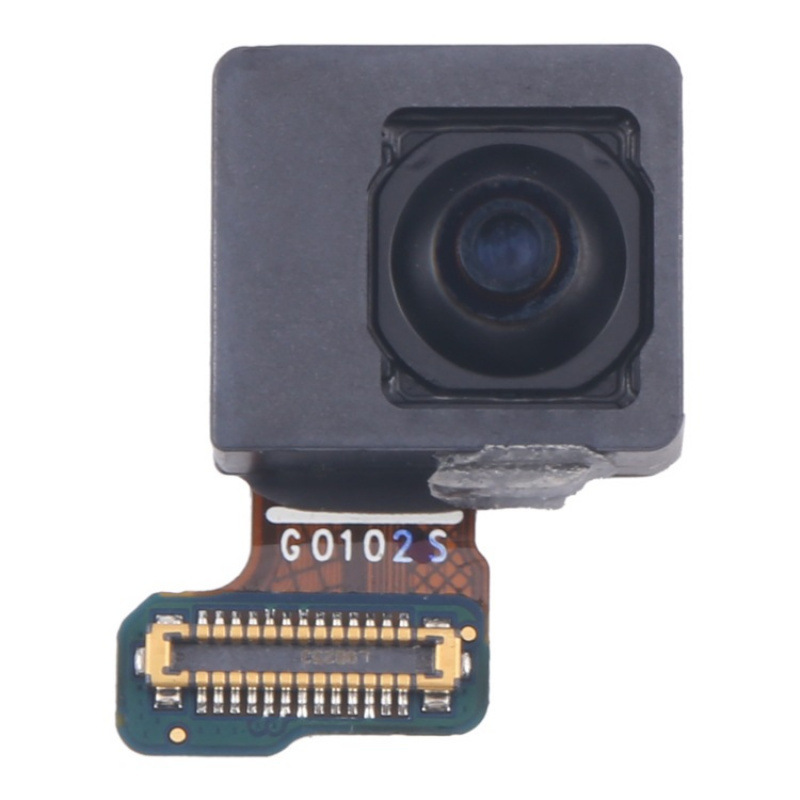

Roughly a third of jobs blamed on a faulty camera module turn out to be a torn flex cable or a software fault. Cheap aftermarket modules can claim OIS and still deliver jitter — the coils are not doing the work. Galaxy Note 20 Ultra modules are matched sensor-to-connector, because a single mismatch presents as a hardware fault. For Galaxy Note 20 Ultra we test focus and stabilisation on a bench handset before the lot ships.

Camera diagnostics is a matching discipline: sensor, autofocus and connector have to line up, and a mismatch anywhere in that chain presents exactly like a dead module.

Specs and checks that matter

• Grading: Modules are graded A, B or C, and the grade is stated
• Misdiagnosis: A share of "camera faults" are actually flex or software problems, not the module
• Bench test: Focus and stabilisation are checked on a handset before a lot ships
• Connector types: ZIF and board-to-board connectors are not interchangeable
• Three-way match: Sensor, autofocus and connector all have to match the handset — one mismatch reads as a fault

Buyer questions

What causes blurry photos after a replacement?

Usually a focus calibration or lens alignment issue, though dust on the sensor or a firmware mismatch can look identical.

Will it match my model?

Sensor, AF and connector all have to line up; send the model and we confirm the correct module.

Does the OIS actually work?

On Grade A and OEM modules yes; on the cheapest aftermarket units it is frequently simulated.

What testing is done?

Focus, stabilisation and connector seating are tested on each module before shipping.
